Forging Manipulators

Rail-Bound Forging Manipulator (0.3-50 ton)
Request a Quote

Rail-Bound Forging Manipulator (0.3-50 ton)

Longyan Machinery produces 0.3-ton to 50-ton rail-bound hydraulic forging manipulators, capable of freely performing any movement and placement of 0.3-ton to 50-ton forgings from the material storage area to the heating furnace and then to the forging hammer.

Main Components
Trolley, carriage, platform, clamp frame, etc.

Transmission and clamping types
  • Transmission forms: all-hydraulic or mechanical-hydraulic hybrid
  • Clamp styles: gripper type, embrace type, or fork type

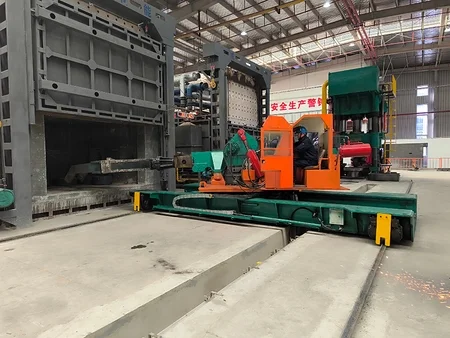

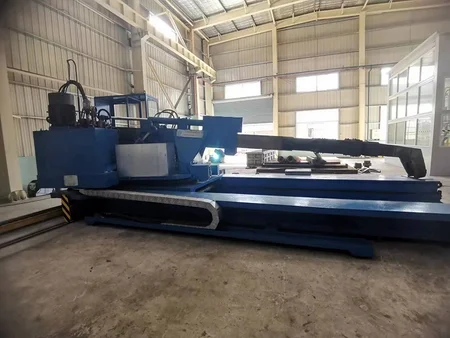

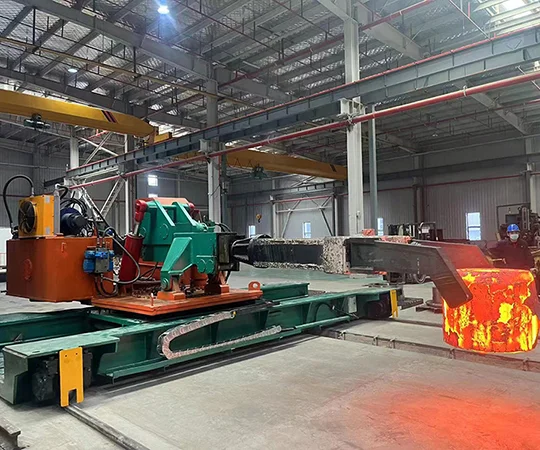

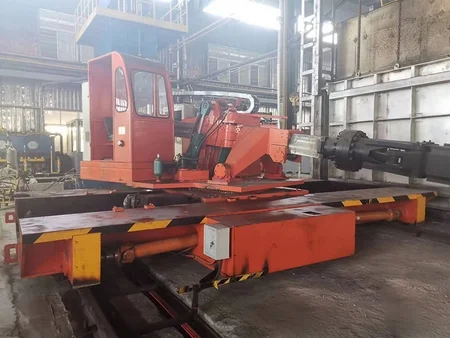

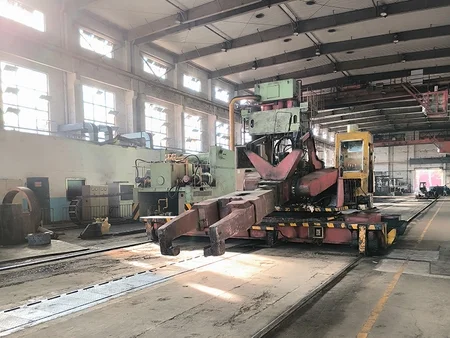

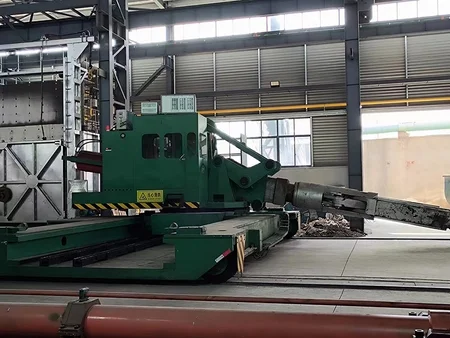

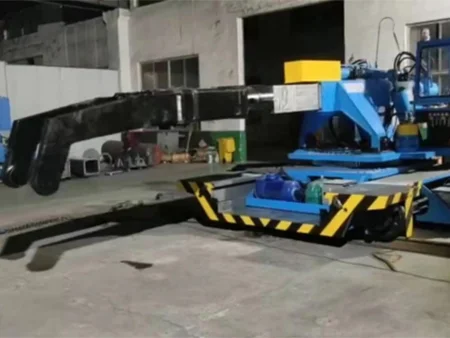

Rail-Bound Forging Manipulator (0.3-50 ton)
Rail-Bound Forging Manipulator (0.3-50 ton)
Rail-Bound Forging Manipulator (0.3-50 ton)
Rail-Bound Forging Manipulator (0.3-50 ton)
Rail-Bound Forging Manipulator (0.3-50 ton)
Rail-Bound Forging Manipulator (0.3-50 ton)
Specifications
Model ZQLJ-1 ZQLJ-2 ZQLJ-3 ZQLJ-5 ZQLJ-8 ZQLJ-10 ZQLJ-15 ZQLJ-20 ZQLJ-25 ZQLJ-30
Nominal carrying capacity (kN) 10 20 30 50 80 100 150 200 250 300
Transmission Hybrid, hydraulic Hybrid, hydraulic Hybrid, hydraulic Hybrid, hydraulic Hybrid, hydraulic Hybrid, hydraulic Hydraulic Hydraulic Hydraulic Hydraulic
Clamping range (mm) 0-800 0-1000 0-1200 0-1400 0-1500 0-1600 0-1800 0-2000 0-2500 0-3000
Tongs center height (mm) 950-1550 1025-1625 1100-1700 250-2150 350-2250 1500-2500 1500-2500 1600-2600 1600-2600 1700-2700
Tilting angle of tongs 7°/down to floor 7°/down to floor 7°/down to floor 7°/down to floor 7°/down to floor 5°/down to floor 5°/down to floor 5°/down to floor 5°/down to floor 5°/down to floor
Steering speed of manipulator (r/min) 5 4 4 3 3 3 2 2 2 2
Steering angle of manipulator (°) ±360 ±360 ±360 ±360 ±360 ±360 ±360 ±360 ±360 ±360
Travel speed (m/min) 60 60 60 50 50 50 40 40 40 40
Working pressure (MPa) 8-12 8-12 8-12 10-16 10-16 10-16 10-16 12-16 12-16 12-16
Min. installed power (kW) 22 30 37 45 60 75 82 90 100 135

Note: Transmission types (H-Hybrid, Y-Hydraulic)

Furthermore, Longyan Machinery has recently developed a rapid forging manipulator, which can meet the needs of different users in all aspects. This equipment can perform eight actions: trolley travel, carriage travel, carriage rotation, clamp rod telescoping, clamp rod pitching, clamp frame parallel lifting/lowering, clamp jaw clamping, and clamp head rotation. The main trolley frame is a frame-type welded structure, adopting single-side drive, powered by a motor or engine. The carriage travels back and forth on the rails within the main trolley frame, driven by a motor or engine. The platform achieves 360° rotation driven by a motor or engine and a slewing bearing, and is equipped with mechanical protection. The clamp rod freely rotates and clamps driven by an oil cylinder and motor.

Related Forging Manipulators
5-Axis Forging Manipulator (0.2-1.2 ton)
5-Axis Forging Manipulator (0.2-1.2 ton)
Forging Manipulator (0.3-200 ton)
Forging Manipulator (0.3-200 ton)
Rail-Bound Forging Manipulator (0.3-50 ton)
Rail-Bound Forging Manipulator (0.3-50 ton)
Mobile Transport Manipulator (0.6-30 ton)
Mobile Transport Manipulator (0.6-30 ton)
Automatic Seamless Rolled Ring Forging Line
Automatic Seamless Rolled Ring Forging Line

The main equipment includes: a forging manipulator for handling raw materials, a hydraulic forging press for upsetting and piercing the blank, a forging manipulator for blank transfer and positioning, a radial-axial ring rolling machine for ring rolling, a forging manipulator for finished ring removal, and a straightening press for correcting ring deformation.

Learn More
Main Equipment

A rail-bound manipulator operates fixed on preset rails, completing loading, unloading, and positioning via hydraulic drive. It is suitable for fixed paths, high repetitive positioning accuracy, and heavy workpieces. A rail-less manipulator is a free-moving loading/unloading equipment with self-propelled capability (usually wheel-driven), suitable for multi-variety, small-batch production, or spaces with limited access.

The rail-bound hydraulic forging manipulator is only suitable for horizontal straight-line rail operation. If slight curves or slopes are needed, a special chassis or track-changing mechanism can be customized.

Bearing capacity required is ≥5T/m2. A reinforced concrete foundation is recommended. Track installation requires leveling, grouting, and thermal expansion treatment.
