FAQs

  • Technical consultation: We assist in equipment selection, process design, and material matching to ensure optimal performance.
  • Installation & commissioning: Remote or on-site support is available for international clients to ensure rapid production readiness.
  • Operator training: We provide complete training for machine operation, safety, and best practices to ensure efficient and reliable use.

Yes. We offer customized equipment and production line design tailored to specific applications, such as gear rings or bearing rings. With full capabilities in manufacturing CNC forging machines, we provide comprehensive support covering technical services, equipment supply, custom solutions, and after-sales care.

We utilize advanced CNC technology to ensure dimensional accuracy and production efficiency. Combined with responsive after-sales support, our solutions help automotive manufacturers achieve high-volume, high-quality production with reduced material waste and energy use.

We recommend the following equipment for automotive ring production:

  • Hydraulic Open Die Forging Press
  • D53KS Radial-Axial Ring Rolling Machine

For the aerospace sector, we recommend:

  • Hydraulic Open Die Forging Press
  • D53KS Radial-Axial Ring Rolling Machine

These machines are engineered for high-precision ring rolling applications and are ideal for mass production of uniform, high-strength rings used in aircraft engine assemblies.

Longyan Machinery recommends the following models:

  • Hydraulic Free Forging Press
  • Hydraulic Open Die Forging Press
  • D51K Vertical Ring Rolling Machine
  • D53KS Radial-Axial Ring Rolling Machine

These machines are engineered for high-precision ring rolling applications and are ideal for mass production of uniform, high-strength rings used in aircraft engine assemblies.

The complete line integrates essential equipment: raw material handling manipulators, hydraulic presses for blank preparation, precise blank transfer manipulators, the radial-axial ring rolling machine for optimal ring formation, finished ring removal manipulators, and straightening presses.

To choose your ideal line, consider: annual output and cycle time, required ring dimensions (O.D., thickness, height), material types (especially challenging alloys), desired automation level, available site layout, and your budget.

Yes, absolutely. We specialize in tailoring U-shaped, straight-line, or L-shaped configurations to precisely match your factory's space, process requirements, and efficiency goals.

Our advanced CNC ring processing equipment, including CNC ring rolling machines, hydraulic open die forging presses, hydraulic free forging presses, and orbital forging presses, enables professional production of a wide array of ring components. This includes: bearing inner/outer rings, flanges, gears, slewing bearings, connecting rings, large-diameter rings, turbine rings, and small-to-medium precision rings.

For critical wind power components like tower flanges, main shaft rings, and slewing bearing rings, we recommend our D53KS radial-axial ring rolling machine and hydraulic open die forging press (630-30000T). These machines are engineered for large-diameter ring processing (up to several meters) using high-strength alloy and special steels, ensuring superior durability and high-load performance.

Hydraulic forging presses are widely used and can press various workpieces such as shafts, gears, flanges, titanium alloys, high-temperature alloys, etc. They are extensively applied in multiple fields including aerospace, automotive, railway, petroleum, and shipbuilding.

The hydraulic open die forging press applies high pressure to metal blanks using specialized molds, making it particularly suitable for producing fixed-specification forgings and achieving fast, continuous forging operations.

The hydraulic open die forging press offers high dimensional accuracy and a pressure range of 630-30000 tons. It supports a wide range of customizable mold shapes, allowing for the production of engine connecting rods, gears, and shaft parts used in automotive, aerospace, and machinery manufacturing sectors.

Longyan Machinery's hydraulic open die forging press uses specialized molds to process metal blanks into precise, standard forgings of uniform specifications. It delivers high dimensional accuracy and excellent surface quality for forgings, making it suitable for large-batch production of high-precision wind power tower flanges and main shaft rings of uniform specifications.

The hydraulic free forging press can utilize various molds to perform precision forging in scenarios with different shape processing requirements, making it suitable for small-batch production.

The hydraulic free forging press can perform free forging on metal blanks without molds, making it particularly suitable for sites with single-piece, small-batch production, and the processing of large forgings.

Our hydraulic free forging press has a forging pressure range of 630 tons to 12500 tons. This pressure level can handle the processing of large-volume, high-strength metal billets. It offers high flexibility, meeting the demands of small-batch production with specific forging requirements.

The single arm open die forging press features a C-shaped or open structure overall, with the machine body welded or cast from steel plates. One side is a column or support arm, and the other is an open space. This structure provides ample operating space, allowing access to the workpiece from three directions, making it highly suitable for situations requiring frequent mold installation and workpiece changes.

The single arm open die forging press manufactured by us is easy to operate and allows for easy observation of the forging process. It offers high flexibility and is suitable for various forging processes, especially for small-batch, multi-variety forging production. Additionally, its simple single-arm structure means a small footprint, resulting in lower investment costs for small-scale forging production.

The single arm press is convenient and flexible to use, primarily targeting small-part forging and auxiliary processes on large forging production lines, as well as rapid forging of small quantities of parts in machining workshops and repair shops.

The single-arm design (C-shaped machine body) provides open space, facilitating mold installation and workpiece operation. It is suitable for multi-directional processing and applicable to processes such as free forging, die forging (for small to medium-sized forgings), stamping, extrusion, and straightening, especially suitable for workpieces with complex shapes or those requiring lateral operation.

The single arm open die forging press is suitable for processing various metal materials such as copper, aluminum, stainless steel, and titanium. It can also be used for non-metal material forming, but suitability depends on specific material characteristics and process requirements.

Standard forces include 10 t, 20 t, 40 t, 60 t, 100 t, and 200 t (630–1,000 tons). Customization for other capacities is supported upon request.

A vertical ring rolling machine feeds in the vertical direction, occupies less floor space, and automatically stabilizes the ring’s center of gravity—ideal for small- to medium-sized rings. Horizontal machines suit large-diameter, wide rings.

Standard vertical machines process rings from 55 mm to 1,300 mm in outer diameter. Custom sizes are available upon request.

Select based on forming needs: choose a standard vertical machine for radial-only forming; for combined radial and axial control, opt for a radial-axial model.

Standard models require 90–150 days. Custom configurations depend on specific requirements.

Our ring rolling machines are all manufactured from cast steel, ensuring stable and rigid equipment structure and robustness for durability. This guarantees the accuracy and stability of roll movement, thereby improving the processing precision of ring parts and significantly reducing scrap rates. Additionally, by adopting a CNC system, high-precision processing of ring dimensions, shape, and surface quality can be achieved, significantly enhancing overall engineering efficiency.

Our radial-axial ring rolling machine is manufactured from cast steel, ensuring stable and rigid equipment structure, resistance to deformation, and robustness for durability. It is an ideal equipment for processing seamless ring forgings. Our ring rolling machines can produce various types of rings of corresponding sizes, including flanges and sealing rings, with guaranteed production accuracy.

Our radial-axial ring rolling machine operates with an an electronic handwheel, features a high degree of automation, and uses a cumulative method of local pressurization and continuous small deformation, which can achieve high-precision rolling of ring parts. This meets the wind power industry's demand for high-precision, large ring parts and is suitable for large-scale production of wind power tower flanges and main shaft rings.

It adopts a high-temperature resistant design and can operate for short periods in environments up to 1200℃ (continuous operation requires intermittent cooling).

Supports O.D. 300mm – 700mm ring part handling. The specific range depends on the gripper and load configuration.

Our intelligent manipulator has 5 axes, possessing high flexibility. It can handle most forging transfer tasks, especially the grasping, flipping, and placement of ring parts. It is suitable for scenarios involving shafts, discs, and rings where the transfer path is relatively fixed.

The CNC intelligent forging manipulator is primarily used in the forging process for retrieving workpieces from heating furnaces, feeding/orienting in conjunction with forging hammers/hydraulic presses, performing workpiece flipping or rotation, post-forging transfer, cooling, or positioning at workstations.

Typically supports forging diameters from 60mm to 2800mm+, with a nominal load capacity of 5-1000 kN. The gripper jaw structure supports adjustment or customization.

Yes, it supports preset process programs, one-key operation, automatic feeding and positioning, and can be linked with the main equipment for integrated control.

A rail-bound manipulator operates fixed on preset rails, completing loading, unloading, and positioning via hydraulic drive. It is suitable for fixed paths, high repetitive positioning accuracy, and heavy workpieces. A rail-less manipulator is a free-moving loading/unloading equipment with self-propelled capability (usually wheel-driven), suitable for multi-variety, small-batch production, or spaces with limited access.

The rail-bound hydraulic forging manipulator is only suitable for horizontal straight-line rail operation. If slight curves or slopes are needed, a special chassis or track-changing mechanism can be customized.

Bearing capacity required is ≥5T/m2. A reinforced concrete foundation is recommended. Track installation requires leveling, grouting, and thermal expansion treatment.

The gripper jaws of the mobile transport manipulator support quick replacement to accommodate various forging shapes such as round cakes, blocks, rings, and irregular forgings.

A 'rail-bound + rail-less' hybrid system can be designed. For example, heavy workpieces can be transported by a rail-bound machine to a transfer area, then sorted by a rail-less machine to multiple workstations.

Yes, structural dimensions, load capacity, gripper jaw type, control system, power supply method, etc., can be customized according to production line layout, workpiece characteristics, and operational requirements.

The rolling wheel of a CNC orbital forging press can oscillate around its central axis, thereby expanding the forming area and optimizing force application. It can achieve control of more complex cross-sections (such as V-shaped, T-shaped sections), resulting in more uniform rolling and higher forming precision.

Choose the separated type for large sizes with multiple variations, and the vertical type for small sizes with high precision. Choose the vertical type for standardization, and the separated type for customization.

From round bar clamping to roller propulsion and rocking head oscillation, all are hydraulically adjusted. Compared to previous common old-style orbital forging presses, efficiency is improved by over 50%. With uniform and fixed-stroke control systems, it can save approximately 50% energy.

A CNC radial forging machine is a high-precision, high-repeatability, and highly automated forging equipment, primarily used for closed-die or semi-closed-die forming of metal billets. It features a high degree of automation, suitable for unmanned production lines.

The CNC radial forging machine, through modular mold design and intelligent process control, can efficiently support multi-station/multi-step forging, improving the forming efficiency and precision of complex parts.

A cross wedge rolling machine is suitable for large-batch, high-efficiency production, with efficiency typically 5-20 times that of other processes. Material utilization can reach 85-95%, making it more suitable for parts with large length-to-diameter ratios.

A cross wedge rolling machine is suitable for manufacturing round cross-section shaft-type parts, such as shafts, forging blanks, gear blanks, and other parts.

Yes. Customization content includes: wedge roll shape (flat wedge, stepped wedge, grooved wedge), main spindle power and transmission method, heating system configuration, processing size range customization, etc.
Company Profile
Company Profile
Service & Support
Service & Support

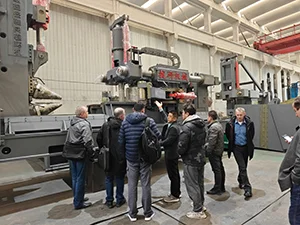

Case Studies
Case Studies
FAQs
FAQs
Benefit from our forging expertise

Know the limits, break them, and customize forging machine solutions to cater to your seamless rolled ring production needs.

Contact Us

Forged To Withstand Your Toughest Tests

Automatic Seamless Rolled Ring Forging Line
Our ring free forging production line can process raw materials directly into finished ring products.

The main equipment includes: a forging manipulator for handling raw materials, a hydraulic forging press for upsetting and piercing the blank, a forging manipulator for blank transfer and positioning, a radial-axial ring rolling machine for ring rolling, a forging manipulator for finished ring removal, and a straightening press for correcting ring deformation.

See More

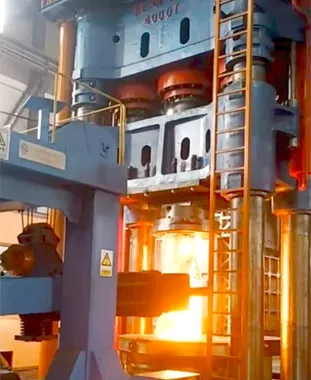

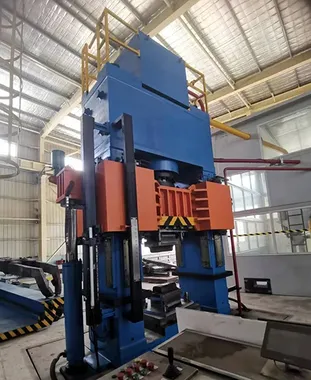

Hydraulic Forging Presses
Hydraulic Forging Presses Read More

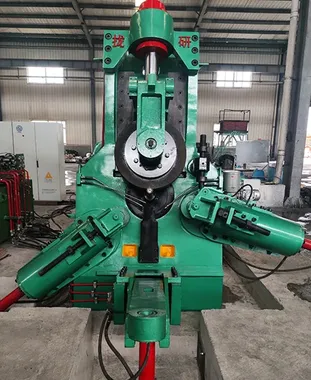

Ring Rolling Machines
Ring Rolling Machines Read More
Forging Manipulators
Forging Manipulators Read More
Orbital Forging Press
Orbital Forging Press Read More
Radial Forging Machine
Radial Forging Machine Read More

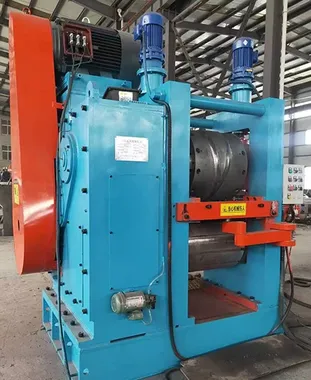

Cross Wedge Rolling Machine
