Forging Manipulators

Forging Manipulator (0.3-200 ton)
Request a Quote

Forging Manipulator (0.3-200 ton)

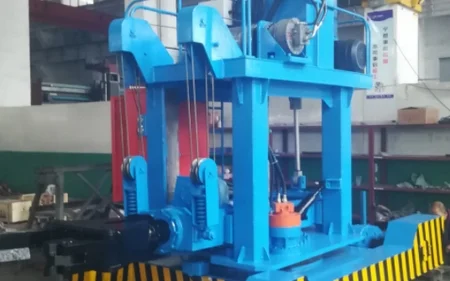

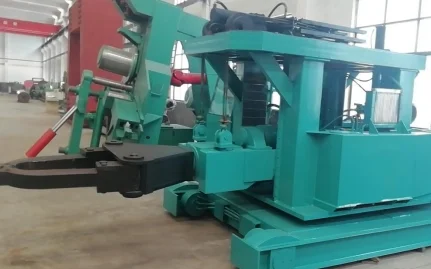

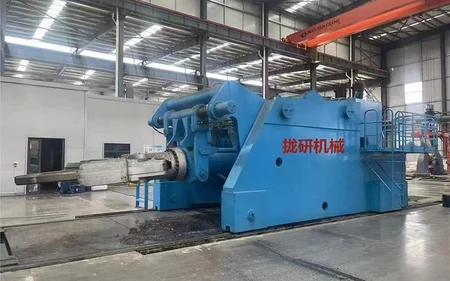

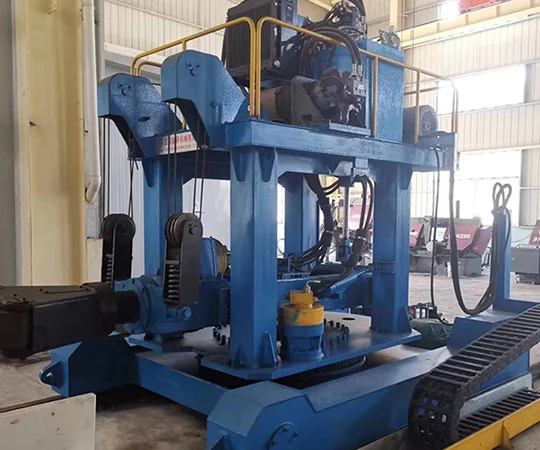

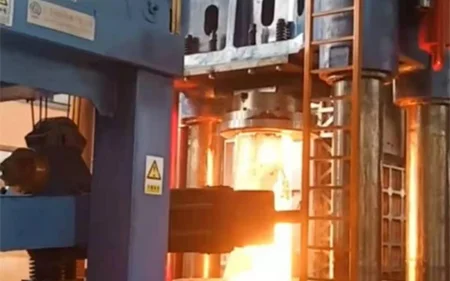

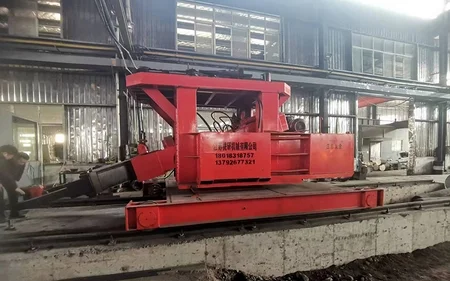

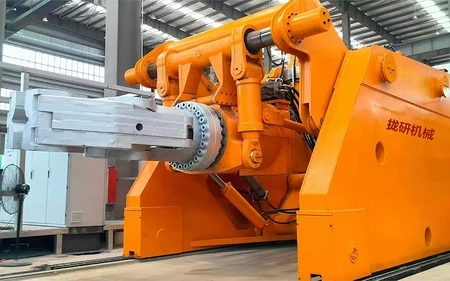

T31 series forging manipulators are available in specifications ranging from 0.3 to 200 tons, capable of holding 0.3-200 ton forgings for free operation on forging hammers or presses, fulfilling various required forging actions. This equipment can perform six major movements: trolley forward/backward travel, clamp arm frame lifting/lowering, clamp arm frame tilting, clamp head clamping/releasing, clamp head rotation, and platform rotation or clamp arm frame swinging and translation. Its transmission form and structural form can be designed and manufactured according to the user's site conditions and actual needs, making it an ideal auxiliary equipment for forging main machines.

Structure types: linear, rotary, swinging, translational, etc.
Transmission types: all-mechanical, all-hydraulic, mechanical-hydraulic hybrid, etc.

Forging Manipulator (0.3-200 ton)
Forging Manipulator (0.3-200 ton)
Forging Manipulator (0.3-200 ton)
Forging Manipulator (0.3-200 ton)
Forging Manipulator (0.3-200 ton)
Forging Manipulator (0.3-200 ton)
Specifications
Model T31-0.5 T31-1 T31-2 T31-3 T31-5 T31-8 T31-10 T31-15 T31-20 T31-30 T31-40 T31-50 T31-60 T31-80 T31-100
Nominal carrying capacity (kN) 5 10 20 30 50 80 100 150 200 300 400 500 600 800 1000
Max. load moment (kN·m) 10 25 60 75 125 200 250 375 500 750 1000 1250 1500 2000 2500
Transmission Hydraulic Hydraulic, mechanical, hybrid Hydraulic, mechanical, hybrid Hydraulic, hybrid Hydraulic, hybrid Hydraulic, hybrid Hydraulic, hybrid Hydraulic, hybrid Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic
Structure H/Z H/Z H/Z H/Z/B H/Z/B H/Z/B H/Z/B H/Z/B H/Z/B Z/B Z/B Z/B Z/B Z/B Z/B
Clamping range (mm) 60-600 75-800 80-900 100-800 150-900 150-1000 150-1100 200-1250 240-1400 280-1600 300-1800 300-2000 300-2200 300-2500 350-2800
Tongs center height (rotary) (mm) 550-1050 650-1400 750-1650 800-1700 950-1950 1100-2200 1200-2300 1350-2600 1450-2900 -- - -- -- -- --
Tongs center height (non-rotary) (mm) 260-750 350-1100 400-1300 450-1350 700-1700 700-1800 750-1950 800-2050 850-2300 1000-2500 1150-2650 1300-2900 1400-3200 1500-3500 1600-3800
Extension length of tongs (mm) 1500 1800 2350 2400 1900 2200 2400 2500 2600 3000 -- 3600 - -- 4000
Tilting angle of tongs 7°/down to floor 7°/down to floor 7°/down to floor 7°/down to floor 7°/down to floor 7°/down to floor 7°/down to floor 7°/down to floor 7°/down to floor 7°/down to floor 7°/down to floor 7°/down to floor 7°/down to floor 7°/down to floor 7°/down to floor
Standard distance between rails (mm) 1200 1600 1800 2000 2200 2500 2600 3200 3800 4000 4200 4500 5000 5500 6000
Max. rotation speed of tongs (r/min) 30 40 25 25 20 20 16 16 16 16 12 12 12 9 9
Steering speed of manipulator (r/min) 5 5 3 3 3 3 2 2 2 -- -- -- -- -- --
Steering angle of manipulator (°) ±160 ±160 ±160 ±160 ±160 ±160 ±160 ±160 ±160 -- -- -- -- -- --
Travel speed (m/min) 40 36 36 36 30 30 30 30 28 28 28 25 25 20 20
Min. installed power (kW) 7.5 18.5 22 37 60 75 75 97 127 220 265 295 320 400 480
Working pressure (MPa) 45881 45881 45881 45881 44044 45944 45944 45944 16 16 16 16 16 16 16
Min. rotation diameter of tongs (mm) 500 680 750 850 1300 1360 1400 1600 1700 1800 2000 2600 2800 3000 3200

Model Explanation: T31-A-B-C

  • T31: Forging manipulator series number
  • A: Transmission type (J-Mechanical, H-Hybrid, Y-Hydraulic)
  • B: Structural type (H-Rotary, Z-Straight-line Movement, B-Swinging, C-Lateral Movement)
  • C: Load Capacity
Related Forging Manipulators
5-Axis Forging Manipulator (0.2-1.2 ton)
5-Axis Forging Manipulator (0.2-1.2 ton)
Forging Manipulator (0.3-200 ton)
Forging Manipulator (0.3-200 ton)
Rail-Bound Forging Manipulator (0.3-50 ton)
Rail-Bound Forging Manipulator (0.3-50 ton)
Mobile Transport Manipulator (0.6-30 ton)
Mobile Transport Manipulator (0.6-30 ton)
Automatic Seamless Rolled Ring Forging Line
Automatic Seamless Rolled Ring Forging Line

The main equipment includes: a forging manipulator for handling raw materials, a hydraulic forging press for upsetting and piercing the blank, a forging manipulator for blank transfer and positioning, a radial-axial ring rolling machine for ring rolling, a forging manipulator for finished ring removal, and a straightening press for correcting ring deformation.

Learn More
Main Equipment

The CNC intelligent forging manipulator is primarily used in the forging process for retrieving workpieces from heating furnaces, feeding/orienting in conjunction with forging hammers/hydraulic presses, performing workpiece flipping or rotation, post-forging transfer, cooling, or positioning at workstations.

Typically supports forging diameters from 60mm to 2800mm+, with a nominal load capacity of 5-1000 kN. The gripper jaw structure supports adjustment or customization.

Yes, it supports preset process programs, one-key operation, automatic feeding and positioning, and can be linked with the main equipment for integrated control.
