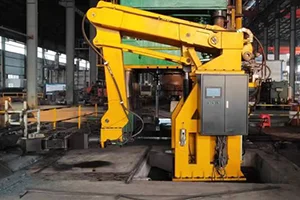

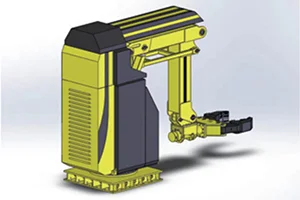

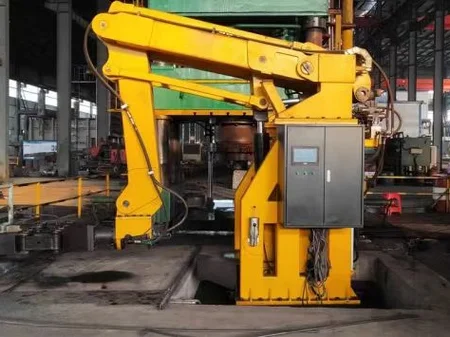

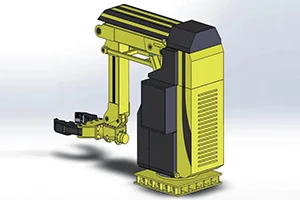

Our factory produces 0.2T-1.2T CNC 5-axis heavy-duty manipulators adapted for the transfer and loading/unloading of blanks in forging workshops, saving labor.
This machine can perform five major movements: rotation, arm telescoping, arm lifting/lowering, clamp flipping, and clamp clamping. It can complete blank transfer work between heating furnaces, ring rolling machines, and presses.
| Clamping range (mm) | 300-700 |
| Nominal carrying capacity (kg) | 1000 |
| Rotation radius (mm) | 2800 |
| Control method | Manual, semi-automatic, automatic |
| Installation | Fixed installation |
| Distance from tongs center to floor (mm) | 500-1400 |
| Extension | |
| Stroke (mm) | 1400 |
| Speed (mm/s) | 150 |
| Positioning accuracy (mm) | ±2 |
| Rotation | |
| Rotation angle (°) | ±360 (depending on layout) |
| Positioning accuracy (°) | ±1 |
| Lifting | |
| Min. center height (mm) | 500 |
| Stroke (mm) | 400 |
| Speed (mm/s) | 100 |
| Positioning accuracy (mm) | ±2 |
As a professional manufacturer of CNC forging equipment, we provide comprehensive service and support to our international clients, covering equipment supply, technical assistance, customized services, and after-sales guarantees.
The main equipment includes: a forging manipulator for handling raw materials, a hydraulic forging press for upsetting and piercing the blank, a forging manipulator for blank transfer and positioning, a radial-axial ring rolling machine for ring rolling, a forging manipulator for finished ring removal, and a straightening press for correcting ring deformation.
