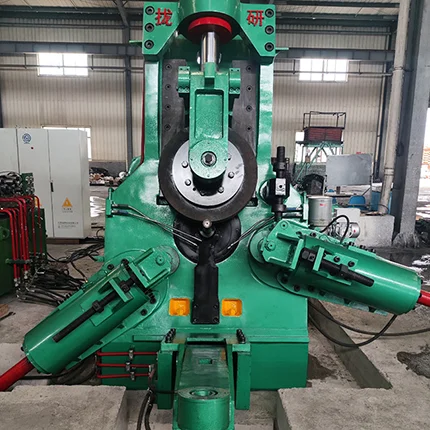

Vertical Ring Rolling Machine, D51K

The D51K series CNC vertical ring rolling machine is specialized equipment used for ring rolling processing, capable of automating the ring expansion process without manual operation. It is an ideal equipment for processing seamless ring forgings, particularly suitable for processing bearings, gear rings, wheel rims, slewing bearings, flanges, and high-temperature alloy rings for aircraft, etc.

  • Ring outer diameter 160 mm – 1,600 mm
  • Ring height 30 mm – 1,000 mm
  • Maximum rolling force up to 2,500 kN, accommodating rings of various sizes, applications, and materials
Request a Quote
Specifications
Model Working range (outside diameter of ring) (mm) Max. rolling force (kN) Max. rolling speed (m/s) Rolling wheel diameter (mm) Min. center distance of wheel and mandrel (mm) Ring height (mm) Hydraulic cylinder stroke (mm) Larger hole diameter of tapered sleeve (mandrel sleeve) (mm) Main motor power (kW) Dimensions (mm)
160A-160B 55-160 50 2.5 360 200 40 50 70(40) 18.5 1700×1525×1700
250CY 80-250 100 2.3 500 250 60 100 60 37 2300×1625×2310
250CY-B 80-250 150 1.8 500 250 130 100 60 45 2750×1625×2310
350A 180-350 250 1.5 680 345 120 110 90 75 3200×2000×2900
350B 180-350 300 1.5 680 345 160 110 90 90 4200×2000×2910
450A 250-450 350 1.4 720 380 120 130 110 75 3200×2700×3210
450B 250-450 450 1.6 730 380 220 130 110 110 4500×2700×3210
450KT 250-500 450 1.7 740 380 160 130 110 90 4500×3600×3200
450KY-B 250-500 500 1.5 760 380 230 130 110 110 5500×3600×3200
550A 350-600 500 1.7 740 380 180 150 110 110 5000×4000×3500
550B 350-600 550 1.3 760 380 300 150 110 132 5800×4000×3500
800A 400-800 500 1.37 780 380 80 200 110 110 5500×3500×4500
800B 400-800 550 1.37 800 380 200 200 110 132 5700×3500×4500
1000A 500-1000 800 1.3 820 460 100 250 130 132 4000×3500×3900
1000B 500-1000 800 1.3 820 460 200 250 130 132 5600×3500×3900
1200A 600-1200 800 1.3 820 460 100 250 130 132 4100×3800×4000
1200B 600-1200 800 1.3 820 460 200 250 130 132 5700×3800×4000
1300N 600-1300 800 1.3 800 485 300 350 180 160 5700×3800×4200

Note: Automatic series models available upon request.

Applicable materials

High-temperature alloy steel, bearing steel, carbon steel, copper, aluminum alloy, etc.

Applications
  • Bearing manufacturing: Producing bearing races with high efficiency and precision.
  • Mechanical parts processing: Forming gear blanks, pipe flanges, and other ring-shaped components for automotive, machinery, and chemical piping industries.

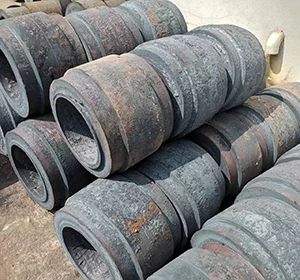

Applications

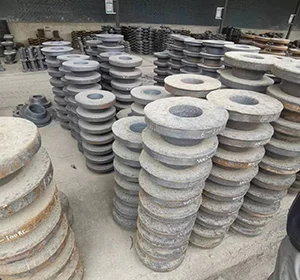

Applications

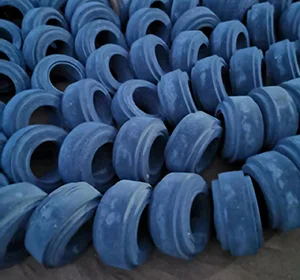

Applications

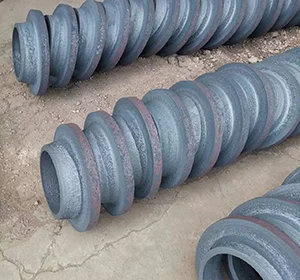

Applications

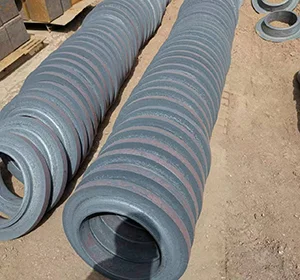

Applications
Applications
Features
  • Adopts a vertical structure. When the equipment rolls rings, the gravity direction of the ring is perpendicular to the rolling force direction, which helps to improve the stability and accuracy of the rolling process, reducing deformation and eccentricity of the ring during rolling.
  • Utilizes a CNC system to achieve precise control over the rolling process through CNC technology, including real-time monitoring and adjustment of parameters such as main roll speed, feed rate, and rolling force, ensuring the dimensional accuracy and quality stability of the rings.
  • Capable of achieving high-precision processing of ring dimensions, shape, and surface quality. Real-time monitoring and adjustment of various parameters during the rolling process ensure consistency and stability of product quality, reducing scrap rates.
  • High degree of automation, capable of continuous rolling production, reducing manual intervention and auxiliary time, greatly improving production efficiency.
Clients
D51-450A Jiangyin Yuliang
D51-550B Zhongji (Jiangyin)
D51K-550B Huaxi Flange
D51K-450 Jinjiang Yangjun
D51K-550B Taicang Jiulei
D51-1000A Zhongji (Jiangyin)
D51K-550B Hongxi Precision
D51K-800B Hongxi Precision
D51-550B Quanzhou Yongsheng
D51-450KY-B Taicang Jiulei
D51-550B Taicang Jiulei
D51-550 Boshan Zhiyue
D51K-550 Qingman Forging
D51K-350 Hongyu Bearing
D51K-500E Jinan Hengsheng
D51K-450 Shandong Xinchuan Yuan
D51K-550 Zibo Houpu
D51K-450 Chongqing Xinyongqiang
D51K-1500 Xingda Petrochemical
D51-1500 Jiangyin Gaoyuan
D51-1500 Hangzhou Chengzhu
D51K-1500 Zhangjiagang Lexin
D51-630 Hanzhong Xinghan
D51K-550B Giant Lightweight Alloy
D51K-800 Wazhou
D51K-450 Wafangdian Jincheng Forging
D51K-400E Shanghai Jiaotong University
D51Y-250E LYC
D51K-800E LYC
D51K-250E Yichuang Precision Engineering
D51K-250E-B Ruyi Bearing
D51K-350E Ruyi Bearing
D51K-800E Yuanlong Forging
D51K-650E Anhui Jindingsheng
D51K-650E Anhui Jindingsheng
D51K-800B Tianbao Group
D51K-1000B Shanxi Jinshi
D51K-1200 Russia client
D51K-1000B Shanxi Liangpin
D51K-1200B Hebei Kairui Equipment
D51K-1000B Cangzhou Yibo Pipeline Technology
D51K-1000B Wuhan Zhongcheng
D51K-800E Changzhou Changchao Mould
D51K-800E China Aviation Technology Harbin Dongan Engine
Related Ring Rolling Machines
Vertical Ring Rolling Machine
Vertical Ring Rolling Machine D51K
Radial-Axial Ring Rolling Machine
Radial-Axial Ring Rolling Machine D53KS
Automatic Seamless Rolled Ring Forging Line
Automatic Seamless Rolled Ring Forging Line

The main equipment includes: a forging manipulator for handling raw materials, a hydraulic forging press for upsetting and piercing the blank, a forging manipulator for blank transfer and positioning, a radial-axial ring rolling machine for ring rolling, a forging manipulator for finished ring removal, and a straightening press for correcting ring deformation.

Learn More
Main Equipment

A vertical ring rolling machine feeds in the vertical direction, occupies less floor space, and automatically stabilizes the ring’s center of gravity—ideal for small- to medium-sized rings. Horizontal machines suit large-diameter, wide rings.

Standard vertical machines process rings from 55 mm to 1,300 mm in outer diameter. Custom sizes are available upon request.

Select based on forming needs: choose a standard vertical machine for radial-only forming; for combined radial and axial control, opt for a radial-axial model.

Standard models require 90–150 days. Custom configurations depend on specific requirements.
