Can replace traditional air hammers, saving energy and reducing noise, favoring small-batch, multi-variety forging.

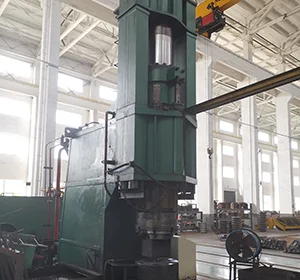

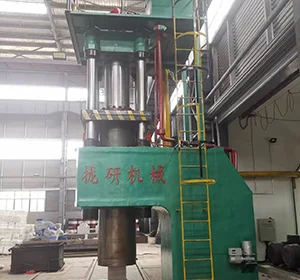

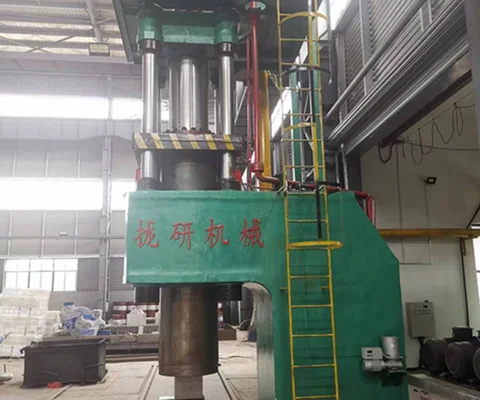

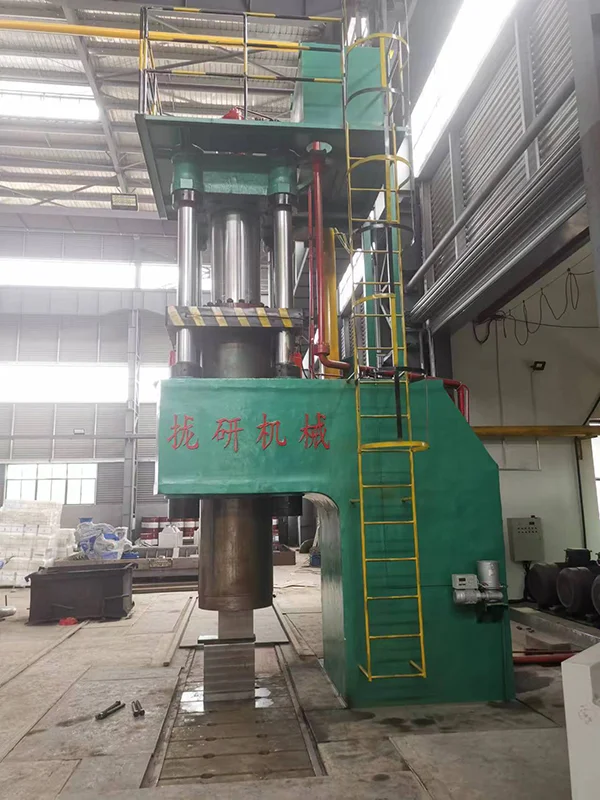

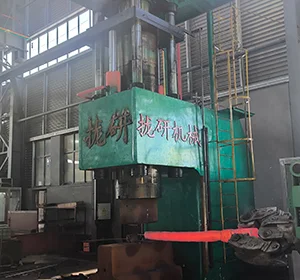

The single arm open die forging press generally presents a C-shaped or open structure. The machine body is made of welded or cast steel plates. One side is a column or support arm, and the other is an open space. This structure provides open operating space, allowing easy access to the workpiece from three directions, and facilitates easy installation and changing of molds and workpieces. It uses a single cylinder as the main drive oil cylinder, which has a relatively simple structure and lower cost. By controlling the telescopic movement of the oil cylinder through the hydraulic system, the reciprocating up-and-down movement of the slide is achieved, thereby applying pressure to the workpiece.
| Nominal force (ton) | | | |
| Compatible manipulator capacity (ton) | 0.5 | 1 | 1.5 |
| Max. weight of workpiece (kg) | 300 | 600 | 1000 |
| Max. height of steel ingot (mm) | 800 | 1200 | 1400 |
| Upper and lower anvil size (mm) | 450×220 | 800×300 | 1000×350 |
| Motor power (kW) | 90 | 180 | 270 |
The single arm open die forging press is widely applied in:
As a professional manufacturer of CNC forging equipment, we provide comprehensive service and support to our international clients, covering equipment supply, technical assistance, customized services, and after-sales guarantees.

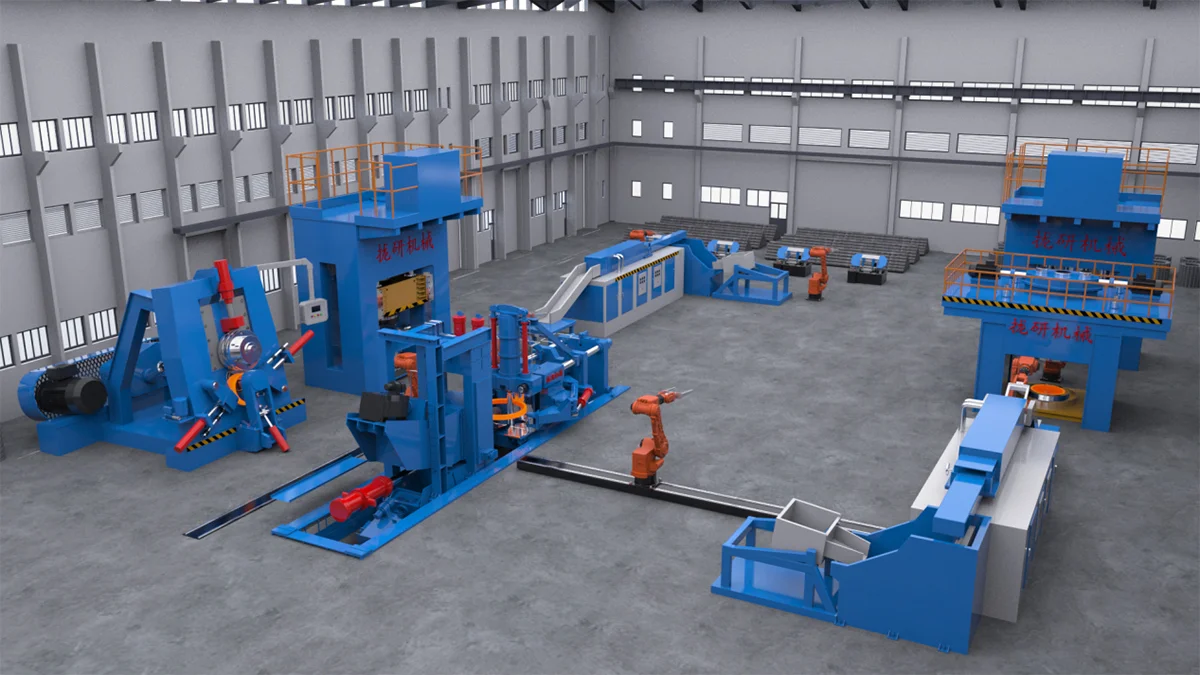

The main equipment includes: a forging manipulator for handling raw materials, a hydraulic forging press for upsetting and piercing the blank, a forging manipulator for blank transfer and positioning, a radial-axial ring rolling machine for ring rolling, a forging manipulator for finished ring removal, and a straightening press for correcting ring deformation.
