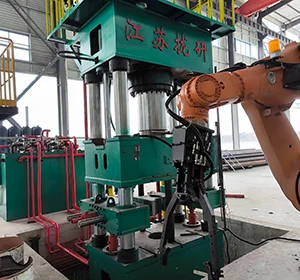

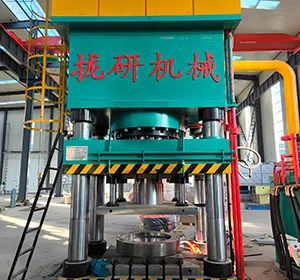

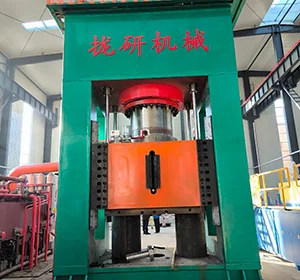

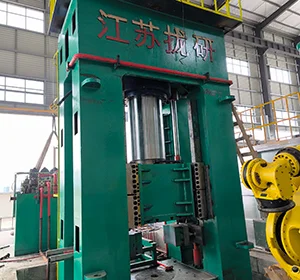

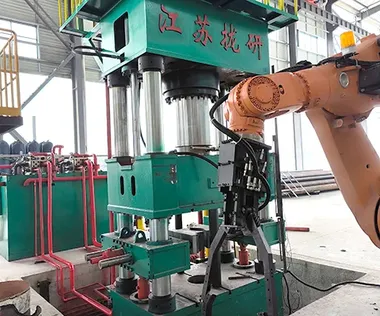

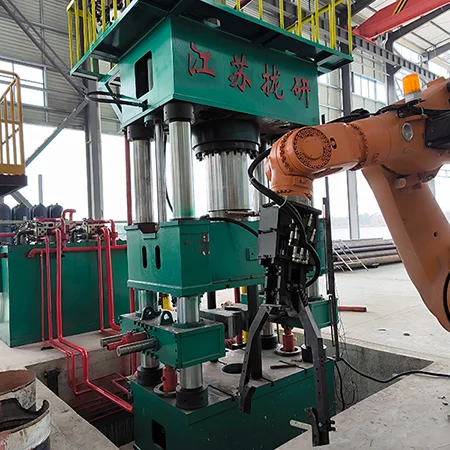

The hydraulic open die forging press is forging equipment that applies high pressure to metal blanks through specialized molds to precisely form them within the mold cavity. Its forging pressure range can reach 630-30000 tons. This equipment offers high production efficiency, enabling fast and continuous forging operations; forgings have high dimensional accuracy and excellent surface quality, reducing subsequent processing steps.
| Nominal force (ton) | ||||
| Ring blank weight (kg) (with D53K ring rolling machine) | 500 | 1200 | 3000 | 6000 |
| Ring blank weight (kg) (with D51/D52 ring rolling machine) | 100 | 200 | 350 | 600 |
| Max. outside diameter of ring blank (mm) | 600 | 900 | 1100 | 1400 |
| Min. thickness of ring blank (mm) | 70 | 90 | 105 | 120 |
| Max. height of workpiece (mm) | 500 | 800 | 1000 | 1200 |
| Max. piercing diameter (mm) | 200 | 250 | 300 | 400 |
| Power (kW) | 360 | 360 | 540 | 540 |
| Height above floor (mm) | 4500 | 5000 | 5500 | 6000 |
| Floor area (m²) | 30 | 30 | 50 | 50 |
This product is suitable for mass production of uniform specification forgings. It is widely applied in fields such as automotive, aerospace, and machinery manufacturing, for producing parts like engine connecting rods, gears, and shaft parts.
As a professional manufacturer of CNC forging equipment, we provide comprehensive service and support to our international clients, covering equipment supply, technical assistance, customized services, and after-sales guarantees.
The main equipment includes: a forging manipulator for handling raw materials, a hydraulic forging press for upsetting and piercing the blank, a forging manipulator for blank transfer and positioning, a radial-axial ring rolling machine for ring rolling, a forging manipulator for finished ring removal, and a straightening press for correcting ring deformation.
